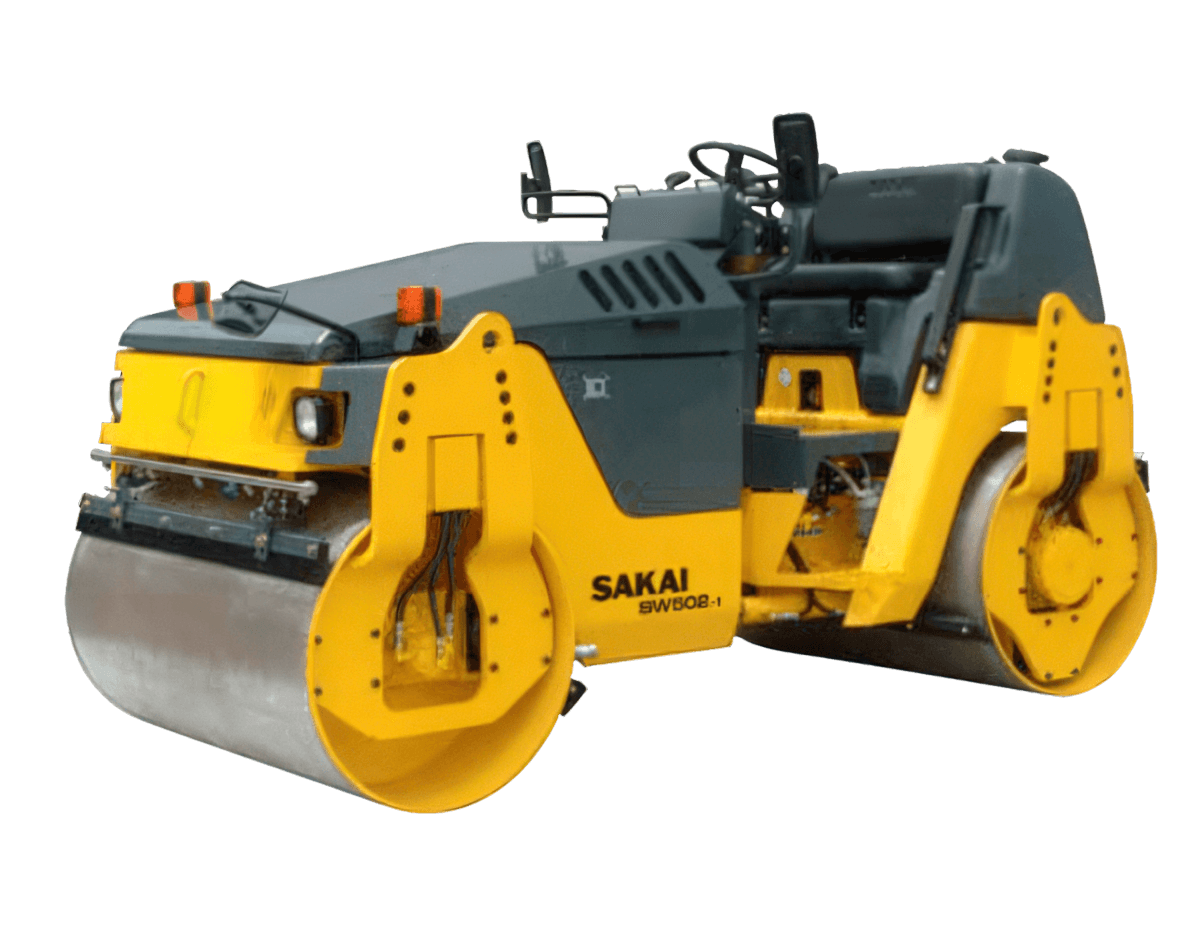

Sakai SW502S-1 - Vibratory Tandem Roller - Equiprime Optimum Solutions Inc.

Sakai SW502S-1 Spec Highlights

Engine

Make KUBOTA

Model V2203-M-ET04 (Interim Tier4)

Fluid Capacity

Fuel Tank L (gal) 50(13)

Hydraulic Oil Tank L(gal) 49/12.9

Complete Specs

Proven Compactive Performance

Roller compactive force reaches target density in less number of roller passes. Provides higher centrifugal force and amplitude.

Low Operating Costs

Sakai's new Eco compaction mode (ECM), which reduces fuel consumption up to 20%, while maintaining compactive performance.

Operator Comfort and Safety

Includes Sakai's durable dual rubber isolation system between the drum and operator deck.

Excellent Traction

Built in safety features prevent accident starting, starts only when the forward, neutral and reverse lever is in the neutral position and press down the parking brake switch.

Sakai SW502S-1 Specifications

Engine

Make

KUBOTA

Model

V2203-M-ET04 (Interim Tier4)

Type

Diesel, Water-cooled, 4-cycle, 4-cylinder

Dimensions

Overall Length L¹ mm(in)

3,100 (122)

Overall Width mm(in)

1,390 (55)

Overall Height mm(in)

1,705 (67)

Wheelbase mm(in)

2,300 (91)

Brake System

Service Brake

Hydrostatic dynamic brake through drive system / FNR Lever

Secondary Brake (Emergency Brake)

Hydrostatic + Spring-applied hydraulically released (SAHR) / Brake Pedal

Parking Brake

SAHR / Panel button

Vibrating System

Power Transmission Type

Hydraulic

No. of amplitude

Vibrator Type

Eccentric Shaft

Fluid Capacity

Fuel Tank L(gal)

50(13)

Hydraulic Oil Tank L(gal)

49/12.9

Sprinkler Tank L(gal)

310(82)

Steering System

Type

Hydraulic Type (articulated)

Steering / Oscillating angle (+/-)

3.5/4.0

Drive System

Transmission Type

Hydrostatic

Type

Direct Drive

Drive Wheel

All Wheel

Weights

Max Operating Weight kg(lb)

4,170(9,195)

Load on Front Axle (with operating weight) kg(lb)

1,990(4,385)

Load on Rear Axle (with operating weight) kg(lb)

2,000(4,410)
