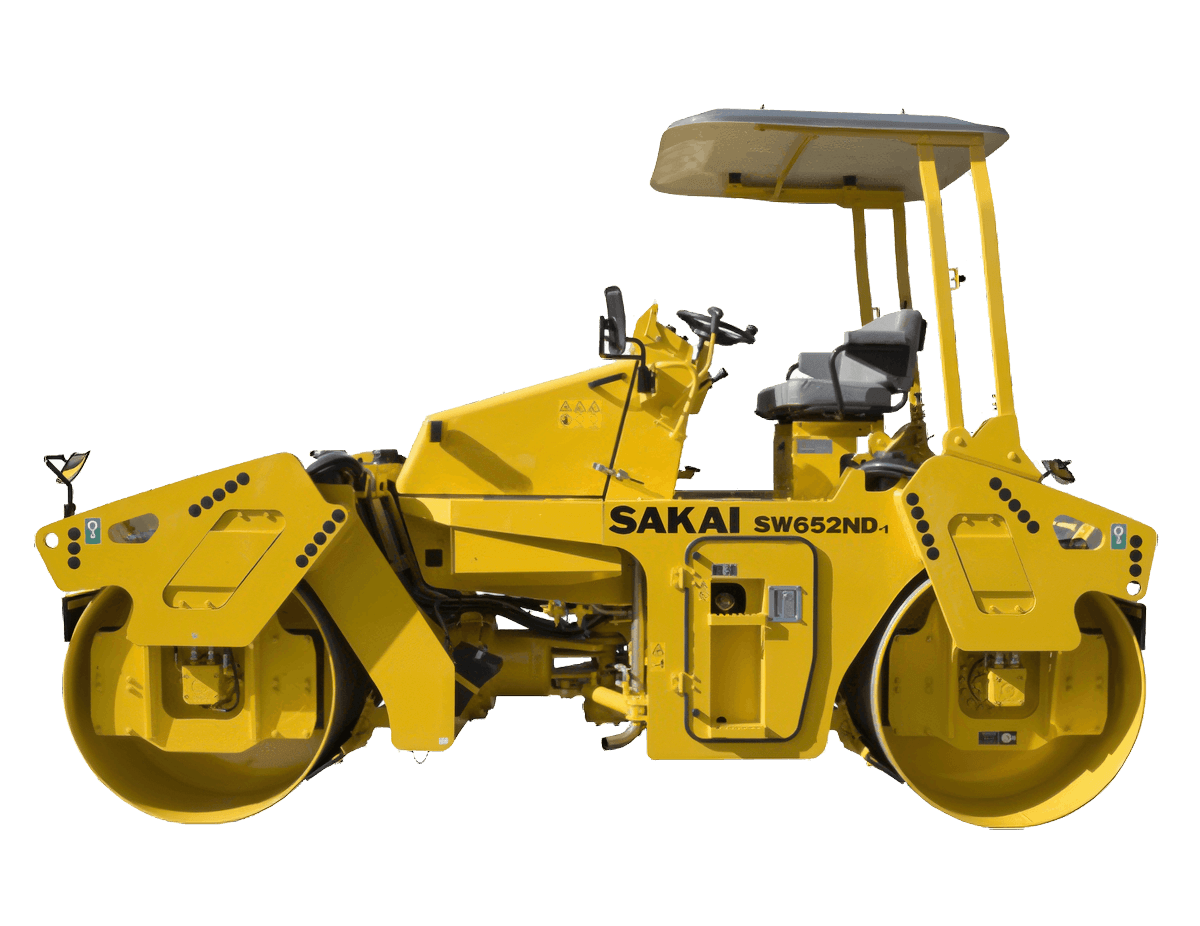

Sakai SW652ND - Vibratory Tandem Roller - Equiprime Optimum Solutions Inc.

Sakai SW652ND Spec Highlights

Engine

Make KUBOTA

Model V3307-DI-T-E2B-RRSH1 (SW652-1K Series)

Vibrating System

Drive Hydrostatic

Vibrator Type Eccentric shaft type

Complete Specs

Sakai Patented Compaction Technologies

SW652-1/-1k, standard model features 4,020vpm high frequency vibration by which can efficiently achieve the density faster and create smoother hot mix asphalt(HMA) mat.

Operator's Comfort

Full view over drum surface, drum edge and sprinkler nozzles. Auto shut-off of water sprinkler when the Forward & Reverse lever is in the neutral position.

Easy Maintenance

Rugged articulated centre-pin joint. Long life Sakai patented rubber isolators for drums.

High Safety Standards

Engine meets EPA standards for SW652-1 series.

Sakai SW652ND Specifications

Engine

Make

KUBOTA

Model

V3307-DI-T-E2B-RRSH1 (SW652-1K Series)

Type

Diesel, Water-cooled, 4-cycle, 4-cylinder, direct injection type with turbo charger

Dimensions

Overall Length mm(in)

4,300(169)

Overall Width mm(in)

1,615(64)

Overall Height(with AWNING) mm(in)

2,795 (110)

Wheelbase mm(in)

3,100(122)

Weights

Operating Weight kg/lbs

7,400 (16,310)

Load on front axle kg(lbs)

3,600 (7,935)

Load on rear axle kg(lbs)

3,800 (8,375)

Vibrating System

Drive

Hydrostatic

Vibrator Type

Eccentric shaft type
