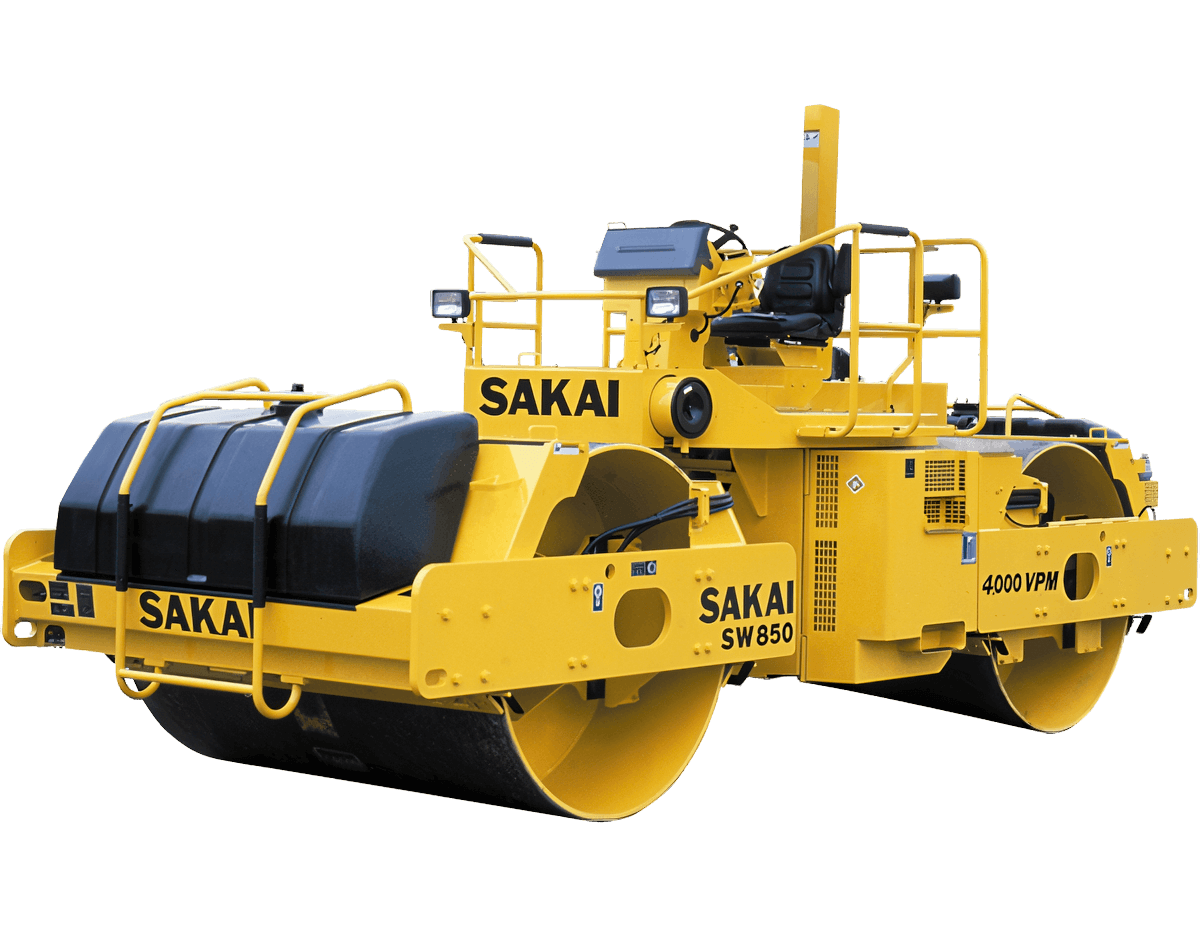

Sakai SW850 - Vibratory Tandem Roller - Equiprime Optimum Solutions Inc.

Sakai SW850 Spec Highlights

Engine

Make Isuzu

Model DD-4BG1T

Vibrating System

Low amp. 67Hz (4,000vpm) 148 (33,290)

Low amp. 50Hz (3,000vpm) 82 (18,520)

Complete Specs

Sakai SW850 Specifications

Engine

Model

ISUZU "DD-4BG1T"

Type

Diesel Engine EPA Tier, Water-cooled 4 cycle

Rated Output kW (HP)/ min⁻¹

90(121) / 2,300

Speed (F & R)

1st km/h (mile/h)

0-7.0 (0-4.3)

2nd km/h

0-11.0 (0-6.8)

Brake System

Service Brake

Hydrostatic & mechanical, multi-wet disc type

Parking Brake

Mechanical, multi-wet disc type

Rolling Width

mm (in)

2,000 (79)

Min. Tuning Radius

mm (in)

6.3 (248)

Capacity

Fuel Tank L (gal)

250 (66)

Sprinkler Tank L (gal)

600 (159) x2

Vibrating Power

Low amp. 67Hz (4,000vpm)

148 (33,290)

Low amp. 50Hz (3,000vpm)

82 (18,520)

Low amp. 42Hz (2,500vpm)

58 (13,010)

High amp. 50Hz (3,000vpm)

141 (31,750)

High amp. 42Hz (2,500vpm)

100 (22,490)

Weights

Gross Weight kg (lbs)

12,500 (27,560)

Load on front axle kg(lbs)

6,050 (13,340)

Load on rear axle kg(lbs)

6,450 (14,220)

Efficiency

Three frequencies (2,500vpm, 3,000vpm and 4,000vpm) with dual amplitude vibration settings make the SW800, SW850 and SW900 very versatile rollers, applicable to asphalt pavement as well as base course.

Excellent Serviceability

The engine and hydraulic components are protected in a fully enclosed compartment with wide service doors. In addition, these components are accessible from the ground.

Easy Operation and Comfort

The 180 degree rotating MPOS (multi-position operator station) provides all around visibility as well as a view of drum edges regardless of the direction of travel. The rotation of the operator station is smooth and effortless. The instrument panel is always located in front of the operator so that the monitoring of gauges and instruments is very easy.

High Safety Standards

The low center of gravity design assures stable drive even over rough surfaces and 1m-1m visibility are standard features of the SW800, SW800N, SW850 and SW900. In addition to a hydrostatic primary brake system and spring-applied, hydraulically released (SAHR) secondary brake, a foor brake is provided for emergency stops.
